Infrastructure
We are pleased to introduce our selves as a team of innovative Engineers, Technicians with ideas & skills with record in execution of critical / specialized jobs of heavy duty equipments, machinery and projects for Troubleshooting, design, remanufacturing and capacity enhancement of various plants. our capability of manufacturing, machining and fabrication works given below:-
Workshop Floor Area (covered)
| Description | L | W | H | Lifting Capacity |
|---|---|---|---|---|
| Shed no. 1 | 36m | 12m | 8m | 20 Tones |
| Shed no. 2 | 24m | 10m | 6m | 7.5 |
| Shed no. 3 | 24m | 7m | 8m | 7.5 |
| Shed no. 4 | 36m | 15m | 9m | 45 tones |
| Open area | 32m | 12m | Mobile crane | |
| Green area | 24m | 6m |
Plants & Machinery
Vertical Turning
ACCURACIES
0.02 Over all
MAKE
Titan
Table Dia 5000 Swing dia 6500mm Height 2800 mm with Delta CNC Control
Vertical Turning
ACCURACIES
-
MAKE
Saggar
Table Dia 1500mm, Swing 1900mm, Height 1500mm
Vertical Turning
ACCURACIES
-
MAKE
Copper
Table Dia 2000mm, Swing 2500mm, Height 1000mm
Vertical Turning
ACCURACIES
-
MAKE
Titan
Table Dia 1500mm, Swing 1700mm, Height 1500mm with Delta CNC Control
Horizontal floor boring machine Spindle Size 125mm
ACCURACIES
0.02 Over all
MAKE
Titan
Y-2500 X-8000 with DRO Floor Plate- 8000 X 2000mm

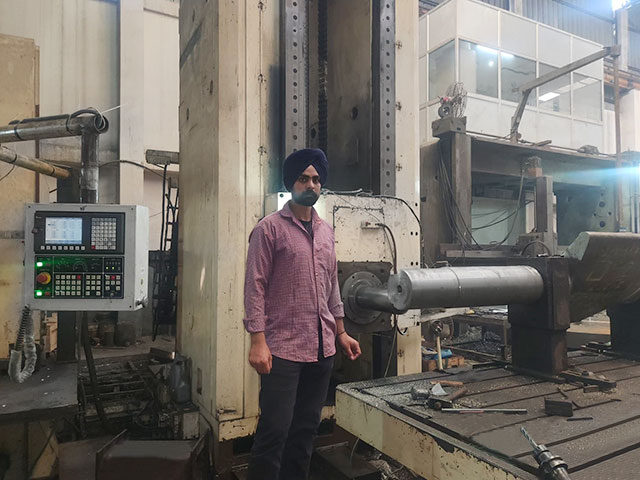

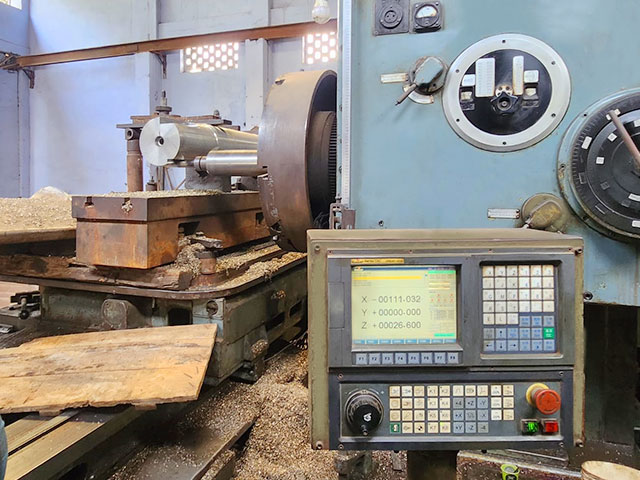

Horizontal Boring Machine
ACCURACIES
0.02 Over all
MAKE
Schiess
160mm with Delta 3 Axis CNC Control X-3000 Y- 3000 Z- 3000 Job Rotating Dia 8000mm
Horizontal Boring Machine
ACCURACIES
0.02 Over all
MAKE
Titan
160mm Delta CNC Control X-4500 Y- 3500 Z- 2100 Table Size 3000 X 3000mm Job Rotating Dia 8000mm
Horizontal Boring Machine 125mm CNC
ACCURACIES
0.02 Over all
MAKE
3TC USSR
X-1600 Y-1600 with DRO Table Size 1600 X 1400 mm
Horizontal Boring Machine 100mm
ACCURACIES
0.02 Over all
MAKE
WMW
X-1400 Y-1250 with DRO Table Size 1400 X 1200 mm
Horizontal Boring Machine 110mm
ACCURACIES
0.02 Over all
MAKE
Wotan
X-2200 Y-1700 with DRO Table Size 1700 X 1500 mm
Horizontal Boring Machine 110mm
ACCURACIES
0.02 Over all
MAKE
Scharmann
X-1400 Y-1250 with CNC Control Table Size 1200 X 1200
Horizontal Boring Machine 90mm
ACCURACIES
0.02 Over all
MAKE
Cornac
X-1000 Y-1000 with DRO Table Size 1000 X 1000 mm
Horizontal Boring Machine 90mm
ACCURACIES
0.02 Over all
MAKE
WMW
X-1000 Y-1000 with CNC Control Table Size 1000 X 1000
Horizontal floor boring machine Spindle Size 100mm
ACCURACIES
0.02 Over all
MAKE
Tos
Y-2000 X-8000 with DRO Table Size 2 Mtr X 1.5 Mtr Floor Plate- 8000mm

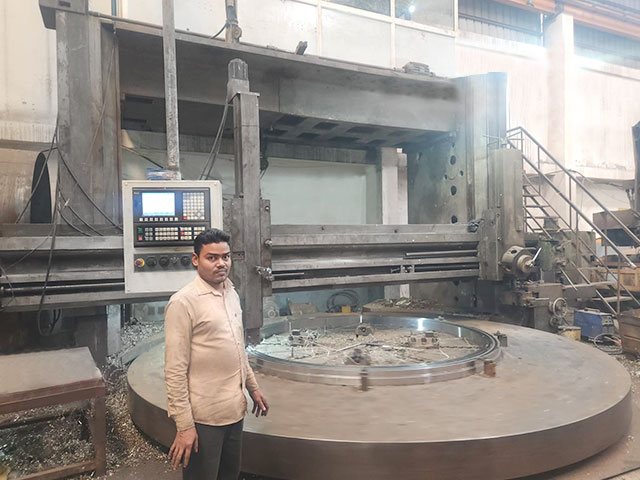

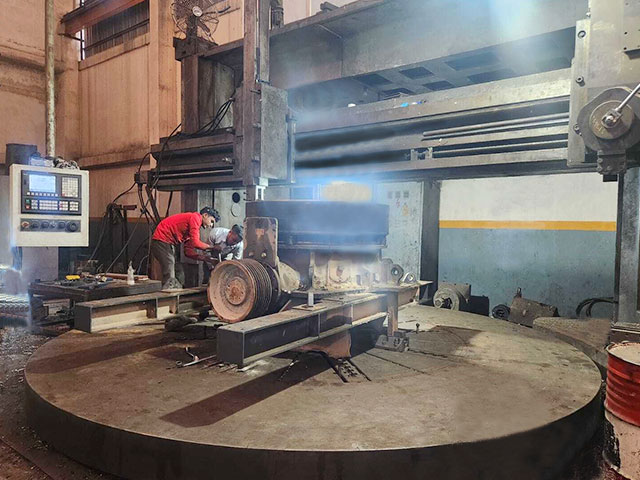

Vertical Turning CNC
ACCURACIES
0.02 Over all
MAKE
Titan
Table Dia 7500mm swing dia 8500mm height 3000mm Vertical Travel of RAM 2500mm with live boring & drilling spindle with Delta CNC Control
Measuring Instrument
| Description | Range | Qty. |
|---|---|---|
| Outside Micrometer | 0-25mm, 25-50, 50-75, 75-100, 100-125, 125-150, 150-300, 300-400, 400-500, 500-600, 600-700, 800-900 900-1000mm | |
| Inside Micrometer | 50-5000mm | 3 no. |
| Dial Bore Gauge | 0-150mm, 0-400mm | |
| Vernier Calliper | 0-300mm-600mm, 1000mm-1500mm | 5Nos., 2Nos. |
| Straight Edge | 3000mm | |
| Slip Gauge Set | ||
| Precision Level | 0.02 in one meter | 2Nos. |
| Dial Gauge | 0.001mm, 0.01 mm | 5Nos. |
| Steel Tape | 3m, 10m | 5Nos. |
| Scale | 300mm, 600mm, 1000mm, 2000mm | 10 Nos., 5 Nos., 3 Nos |
Power Operated Hand Tools
| Description | Qty. |
|---|---|
| 6mm Drill Machine | 1 No. |
| 20mm Drill Machine | 2 No. |
| 30mm Drill Machine | 2 No. |
| Angel Grinder AG-4 | 4 No. |
| Angel Grinder AG-5 | 1 No. |
| Angel Grinder AG-7 | 3 No. |
| Die Hand Grinder | 3 No. |
| Padistal Grinder | 2 No. |
| Flexible Shaft Grinder | 2 No. |
| Portable Ultra Sonic Facility | |
| Hydraulic Jack | 50 Ton |
| Hydraulic Jack | 100 Ton |
| Tool Part Grinder | 2 No. |
| Honing Attachment | 30-50, 50-75, 75-100, 100-150, 150-200, 200-250 |
| Radius Turning Attachment | 200mm-150mm |
